The advantages of DM-MIMD systems are clear: the bandwidth problem that haunts shared-memory systems is avoided because the bandwidth scales up automatically with the number of processors. Furthermore, the speed of the memory which is another critical issue with shared-memory systems (to get a peak performance that is comparable to that of DM-MIMD systems, the processors of the shared-memory machines should be very fast and the speed of the memory should match it) is less important for the DM-MIMD machines, because more processors can be configured without the afore mentioned bandwidth problems.
Of course, DM-MIMD systems also have their disadvantages: The communication between processors is much slower than in SM-MIMD systems, and so, the synchronisation overhead in case of communicating tasks is generally orders of magnitude higher than in shared-memory machines. Moreover, the access to data that are not in the local memory belonging to a particular processor have to be obtained from non-local memory (or memories). This is again on most systems very slow as compared to local data access. When the structure of a problem dictates a frequent exchange of data between processors and/or requires many processor synchronisations, it may well be that only a very small fraction of the theoretical peak speed can be obtained. As already mentioned, the data- and task decomposition are factors that mostly have to be dealt with explicitly, which may be far from trivial.
It will be clear from the paragraph above that also for DM-MIMD machines both the interconnection and the speed of the datapaths are of crucial importance for the practical usefulness of a system. Again, as in section 2.3, the richness of the connection structure has to balanced against the costs. Of the many conceivable interconnection structures only a few are popular in practice. One of these is the so-called hypercube topology as depicted in figure 4.

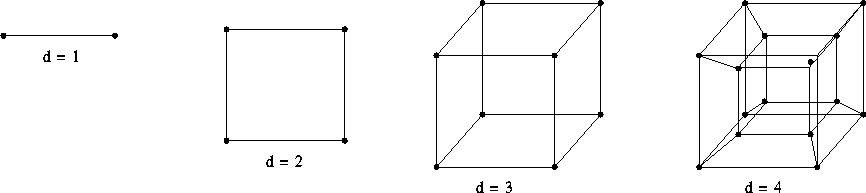

Figure 4: 1-, 2-, 3-, and 4-dimensional hypercube connections.
A nice feature of the hypercube topology is that for a hypercube with
nodes the number of steps to be taken between any two nodes is at most d. So,
the dimension of the network grows only logarithmically with the number of
nodes. In addition, theoretically, it is possible to simulate any other
topology on a hypercube: trees, rings, 2-D and 3-D meshes, etc. In practice,
the exact topology for hypercubes do not matter too much anymore because all
systems in the market today employ what is called ``wormhole routing''. This
means that a message is sent from one node to another node that it wants to
communicate with to set up a direct connection between them. As soon as this
connection is established, the data proper is sent through this connection
without disturbing the operation of the intermediate nodes. Except for a small
amount of time in setting up the connection between nodes, the communication
time has become virtually independent of the distance between the nodes.
Of course, when several messages in a busy network have to compete for
the same paths, waiting times are incurred as in any network that does
not directly connect any processor to all others.
Many of the newly introduced massively parallel DM-MIMD systems seem to favour a 2- or 3-D mesh (torus) structure. The rationale for this seems to be that most large-scale physical simulations can be mapped efficiently on this topology and that a richer interconnection structure hardly pays off. However, some systems maintain (an) additional network(s) besides the mesh to handle certain bottlenecks in data distribution and retrieval.
A non-negligible fraction of systems in the DM-MIMD class employs crossbars. For
relatively small amounts of processors (in the order of 64) this may be a
direct or 1-stage crossbar, while to connect larger numbers of nodes
multi-stage crossbars are used, i.e., the connections of a crossbar at level 1
connect to a crossbar at level 2, etc., instead of directly to nodes at more
remote distances in the topology. In this way it is possible to connect in
the order of a few thousands of nodes through only a few switching stages.
Butterfly-,
-,
or shuffle-exchange networks are often employed in this case.
As with SM-MIMD machines, a node may in principle consist of any type of processor together with local memory (with or without cache) and, in almost all cases, a separate communication processor and the links to connect the node to its neighbours. Nowadays, the node processors are mostly off-the-shelf RISC processors sometimes enhanced by vector processors. A problem that is peculiar to this type of system is the mismatch of communication vs. computation speed that may occur when the node processors are upgraded, without also speeding up the intercommunication. In some cases this may result in turning computational-bound problems into communication-bound problems.
