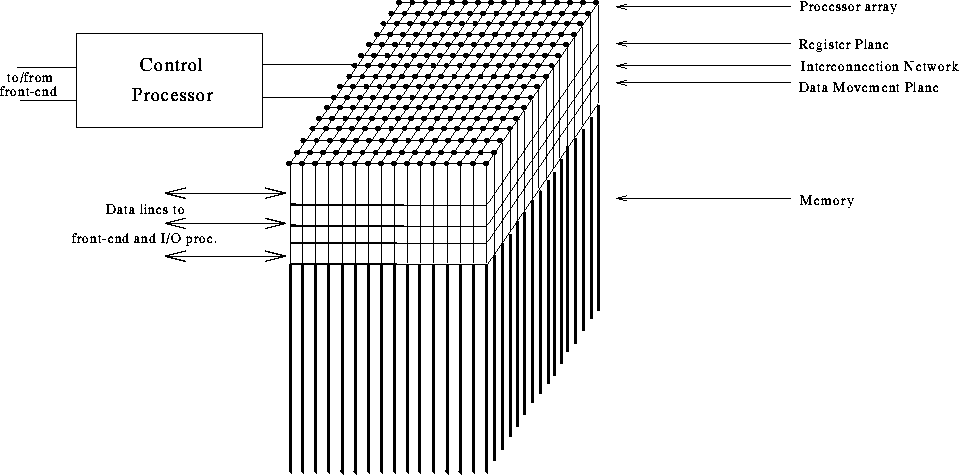

Figure 2: A generic block diagram of a distributed memory SIMD
machine.
All currently available DM-SIMD machines use a front-end processor to which they are connected by a datapath. I/O may be through the front-end system, by the processor array machine itself or both.
Figure 2 might suggest that all processors in such systems are connected in a 2-D grid and indeed, the interconnection topology of this type of machines always includes the 2-D grid. As opposing ends of each grid line are also always connected the topology is rather that of a torus. For several machines this is not the only interconnection scheme: They might also be connected in 3-D, diagonally, or more complex structures.
It is possible to exclude processors in the array from executing an instruction on certain logical conditions, but this means that for the time of this instruction these processors are idle (a direct consequence of the SIMD type operation) which immediately lowers the performance. Another factor that may adversely affect the speed occurs when data required by processor i resides in the memory of processor j (in fact, as this occurs for all processors at the same time this effectively means that data will have to be permuted across the processors). To access the data in processor j, the data will have to be fetched by this processor and then sent through the routing network to processor i. This may be fairly time consuming. For both reasons mentioned DM-SIMD machines are rather specialised in their use when one wants to employ their full parallelism. Generally, they perform excellently on digital signal and image processing and on certain types of Monte Carlo simulations where virtually no data exchange between processors is required and exactly the same type of operations is done on massive datasets with a size that can be made to fit comfortably in these machines.
The control processor as depicted in Figure 2 may be more or less intelligent. It issues the instruction sequence that will be executed by the processor array. In the worst case (that means a less autonomous control processor) when an instruction is not fit for execution on the processor array (e.g., a simple print instruction) it might be offloaded to the front-end processor which may be much slower than execution on the control processor. In case of a more autonomous control processor this can be avoided thus saving processing interrupts both on the front-end and the control processor. Most DM-SIMD systems have the possibility to handle I/O independently from the front-end processors. This is not only favourable because the communication between the front-end and back-end systems is avoided. The (specialised) I/O devices for the processor-array system is generally much more efficient in providing the necessary data directly to the memory of the processor array. Especially for very data-intensive applications like radar- and image processing such I/O systems are very important.
A feature that is peculiar to this type of machines is that the processors sometimes are of a very simple bit-serial type, i.e., the processors operate on the data items bitwise, irrespective of their type. So, e.g., floating-point operations have either to be implemented in software, or to be dealt with by floating-point coprocessors. As the number of processors in this type of systems is mostly large (1024 or larger, the Alenia Quadrics is a notable exception, however), the natural slowness of the processors can be often offset by their number, while the cost per processor is quite low as compared to full floating-point processors. When floating-point coprocessors are added their number is usually much lower because of the cost argument. An advantage of bit-serial processors is that they may operate on operands of any length. Both for random number generation (which often boils down to logical manipulation of bits) and for signal processing this is fortunate because in both cases operands of only 1-8 bits are abundant. As the execution time for bit-serial machines is proportional to the length of the operands, this may result in significant speedups.
